Introduction
In this first blog post, I want to describe the workflow and the tools I use to operate this website and how I publish new content. My focus with this workflow is that I want to be able to publish new posts very quickly. Furthermore, the maintenance should be done effortlessly and I want to minimize the dependence on a hosting provider. Last but not least, the website should be very cost-efficient to run.
Tools
Being a big fan of Google Cloud Platform, I wanted to use Google Cloud Build and Google Cloud Run. Overall, I use the following tools:
- Hugo - as static site generator
- GitHub - as a version control solution
- Google Cloud Build - to automatically build container images and deploy containers to Google Cloud Run
- Google Cloud Container Registry - to store the generated container images
- Google Cloud Run - to run the container
How it’s all connected
In the following section, I am going to describe how the tools work together to enable the workflow to publish the website easily and automatically. The source code for a sample website is hosted on GitHub - link.
Hugo basics
A comprehensive introduction to the Hugo framework is beyond the scope of this post. Therefore, only the essential aspects will be presented here.
Once Hugo is installed on the PC, a new website can be created with the following command. This command creates the required structure and all essential files:
hugo new site <site_name>
With the following command, the web page is generated and can be viewed in a browser. By default, a web server is created such that the website is available at localhost:1313. The view is live, which means that changes to the configuration files or the text contributions are immediately visible:
hugo server
New posts can be created using the following command, this command generates a new file in the posts folder:
hugo new posts/<post_name>.md
Themes are stored in the themes folder. Typically these are added as git submodules, this has the advantage that changes to the original theme can be included via a git merge command:
git submodule add <theme_link> themes/<theme_name>
If the web page is to be published, the following command can be executed. In this step, all static web pages are generated and stored in the public folder. The contents of this folder will eventually be published:
hugo
Leveraging container technology
To ensure the portability of the website, a container image is generated in the workflow. The following Dockerfile is used for this purpose:
FROM klakegg/hugo:0.111.3-ext-alpine-onbuild AS hugo
FROM quay.io/michard/nginx_base_image:0.2.8
COPY --from=hugo /target /usr/share/nginx/html
In this case, a Docker multi-stage build is used. Multi-stage builds allow each stage to produce a set of intermediate image layers that can be used as the base for the next stage. This allows the creation of a final image that only includes the necessary dependencies and components resulting in a smaller, more lightweight image.
The first line takes care of building the static web pages, as described at the end of the previous section by the hugo command. In the following, the result of the build process is copied to the /usr/share/nginx/html folder of an nginx based container image.
The choice of Alpine Linux based container images leads to very lightweight and secure container images. On the one hand, this ensures short build times and, on the other hand, that small capacity is occupied in the container registry.
The following commands can be used to create the container image locally and run the container locally. The website should then be available on localhost:8080:
docker build -t <image_name> .
docker run -d -p 8080:8080 <image_name>
Leveraging Google Cloud Builds and Google Cloud Run
The last section described why container technology is used and how the final container image can be generated locally. In this section, it is described how the final image can be generated leveraging Google Cloud Build. To use Google Cloud Build a cloudbuild.yaml configuration file is required. This file defines several steps of the total build pipeline, the individual steps are executed one after the other. Using a cloudbuild.yaml file allows the definition of the complete build process in a declarative way, making it easy to repeat and automate the build and deployment process.
The content of the cloudbuild.yaml is as follows:
steps:
# This step fetches git submodules
- name: gcr.io/cloud-builders/git
id: Git
args:
- 'submodule'
- 'update'
- '--init'
- '--recursive'
# This step builds the container image
- name: 'gcr.io/cloud-builders/docker'
id: Build
args:
- 'build'
- '-t'
- 'eu.gcr.io/${PROJECT_ID}/hugo-website:${BUILD_ID}'
- '.'
# This step pushes the image to Container Registry
# The PROJECT_ID and BUILD_ID variables are automatically
# replaced by Cloud Build.
- name: 'gcr.io/cloud-builders/docker'
id: Push
args:
- 'push'
- 'eu.gcr.io/${PROJECT_ID}/hugo-website:${BUILD_ID}'
# deploy container image to Google Cloud Run
- name: 'gcr.io/cloud-builders/gcloud'
id: Deploy
args:
- 'run'
- 'deploy'
- 'hugo-website'
- '--image'
- 'eu.gcr.io/${PROJECT_ID}/hugo-website:${BUILD_ID}'
- '--region'
- 'europe-north1'
- '--platform'
- 'managed'
- '--allow-unauthenticated'The individual steps are described below:
- the first step ensures that git submodules are also pulled. This step is necessary because the themes are usually included as git submodules, as described earlier.
- the second step creates the final container image using the Dockerfile previously described. The name of the container image is composed of several elements. At the beginning, the region of the Google Cloud Container Registry is used, followed by the Project ID of the Google Cloud Project. This is followed by a freely selectable name, in this case hugo-website, followed by the current build ID, which is used as a tag.
- the third step pushes the created container image into the Google Cloud Container Registry.
- the fourth step deploys the created container image to Google Cloud Run. The container is launched in a managed Kubernetes cluster. In this step the container image is referenced, a name is used which in this case is hugo-website, and finally, the region in which the container is to be started is specified since this is to be a publicly accessible website, it is defined that users do not have to authenticate themselves.
In the last step, Google Cloud Run automatically generates a URL where the web page can be accessed. Using the Manage Custom Domain function and then Add Mapping in the Google Cloud Console, a custom domain can be linked to the Google Cloud Run service. To do this, the domain must be verified once with Google Cloud. To use a specific subdomain, a CNAME entry must then be set to ghs.googlehosted.com at the domain provider.

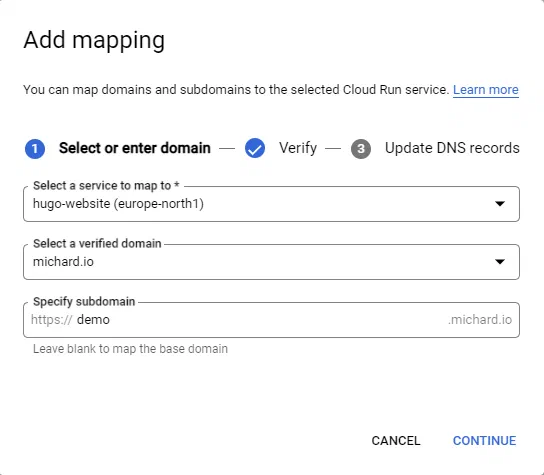

Mapping a custom domain to the Google Cloud Run service
Connecting GitHub and Google Cloud Builds
This section focuses on the missing element that completes the workflow by connecting GitHub with Google Cloud Build.
To do this, a trigger must be set up in the Google Cloud Console at the Google Build Service. A name must be selected for this trigger, then it must be defined which event should activate this trigger. For the given case, the option Push to branch is selected here. Under Source, the GitHub repository and the branch can be selected. Finally, the reference to the cloudbuild.yaml file must be created.

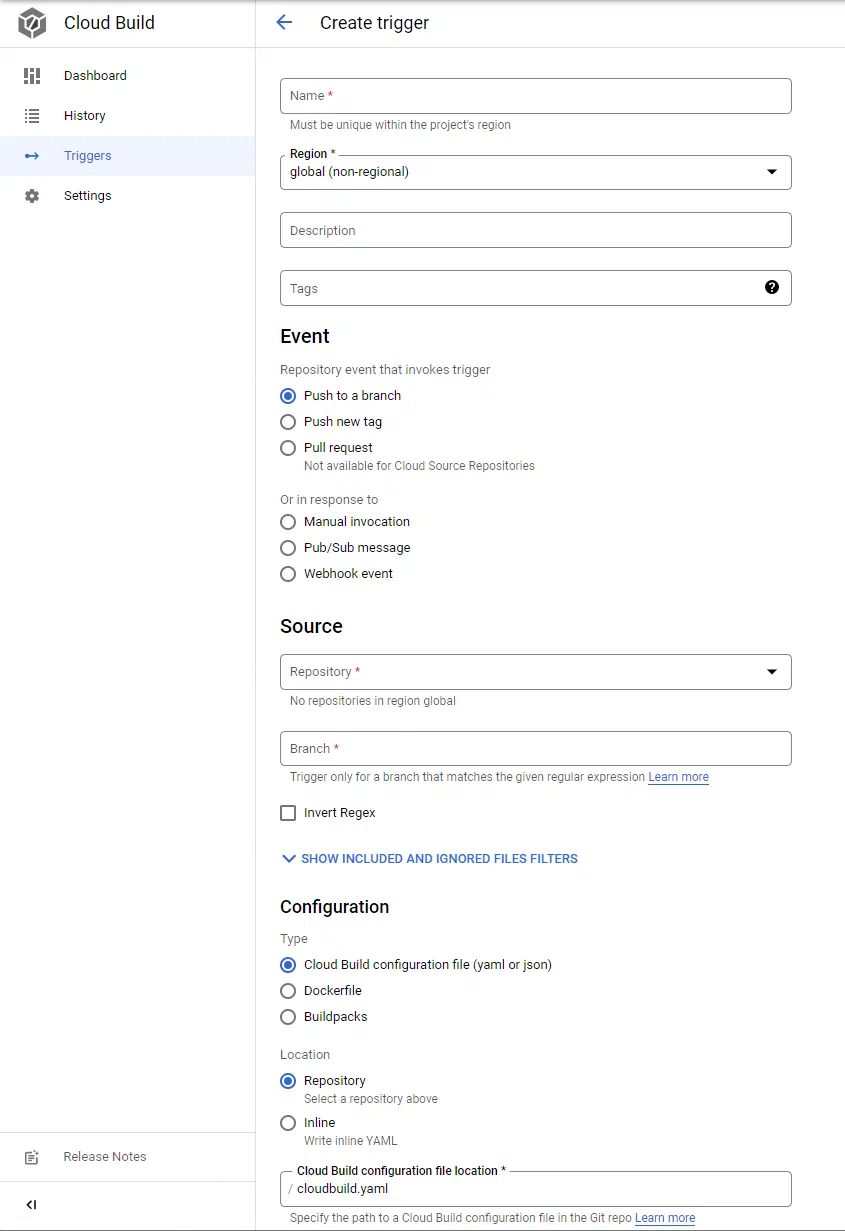

Creating a trigger to automatically deploy the website on each git commit
This completes the workflow. Now with each git commit towards the GitHub repository, the Google Cloud Build process is triggered, which creates the container image and then deploys the container to Google Cloud Run.
Summary

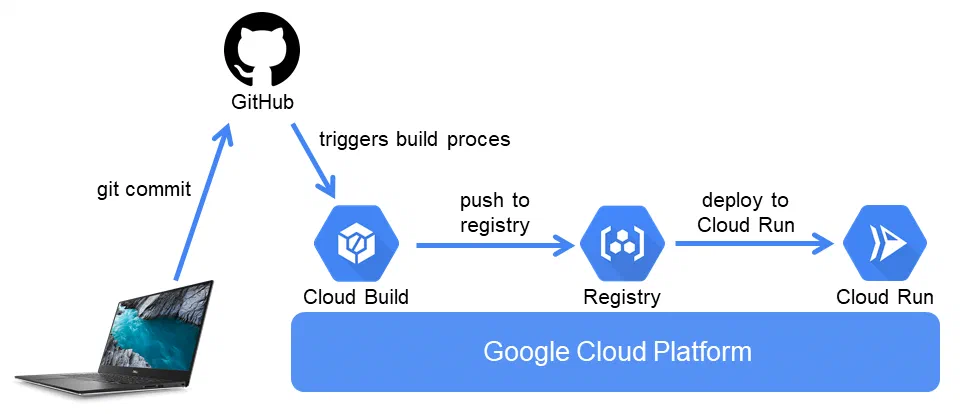

Presentation of the complete workflow
In this post, I describe the workflow I use to publish this website. For me, it is the ideal workflow. I like the high degree of automation which allows me to publish fast and effortlessly. Maintaining this workflow requires negligible effort and running the workflow and the website is very cost-efficient.
